Schematics and Drawings

June 25, 1999

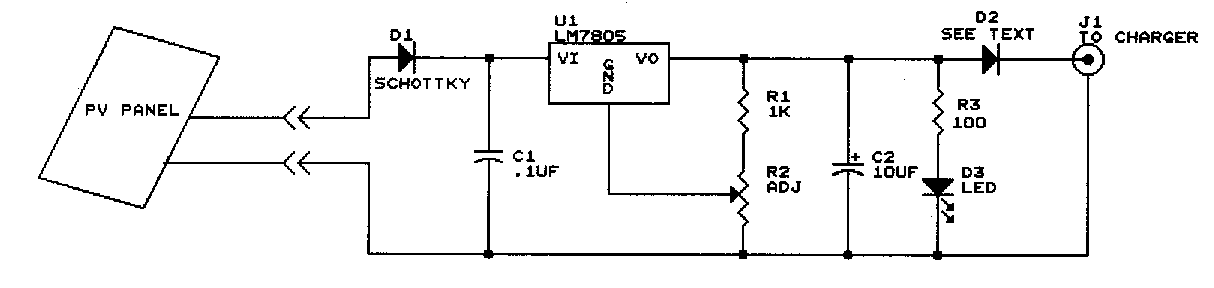

The schematic below is the one I use to charge up to 4 AA NiCad/NiMH cells at once in about an hour using the MAHA MH-C204F unit. With some slight modifications, this circuit can charge or power over 90% of battery operated equipment. Total cost of this circuit and connectors should be less than $10.00.

....details and instructions to follow.
